TextCNN

TextCNN 代码＋图文对应解释

前提

适合了解TextCNN大体思路，但是对Pytorch不了解的小伙伴阅读

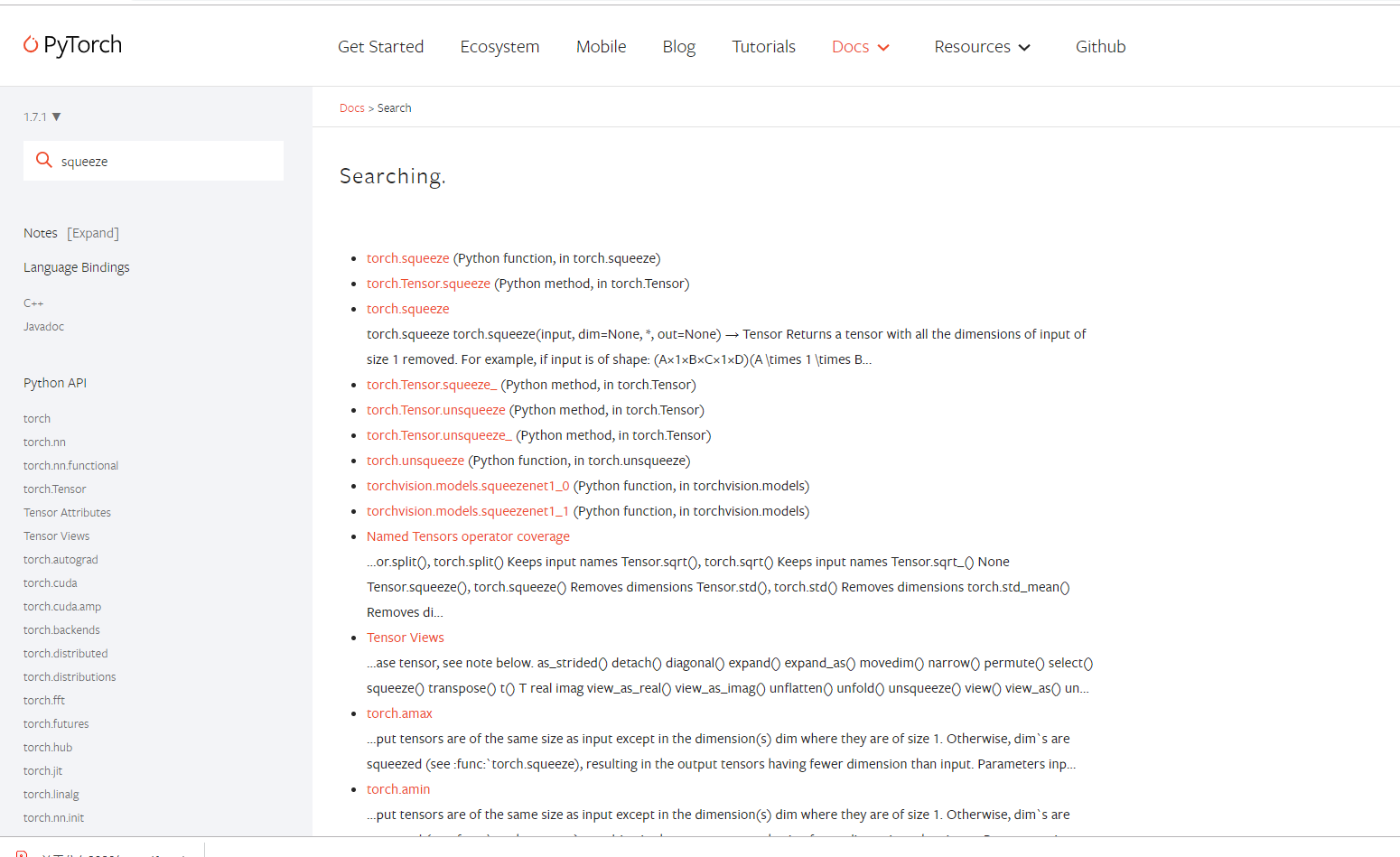

建议:遇到不懂的函数如squeeze()和unsqueeze(),查阅官方文档，或者单独在百度上搜搜这个函数，你就懂了,如图

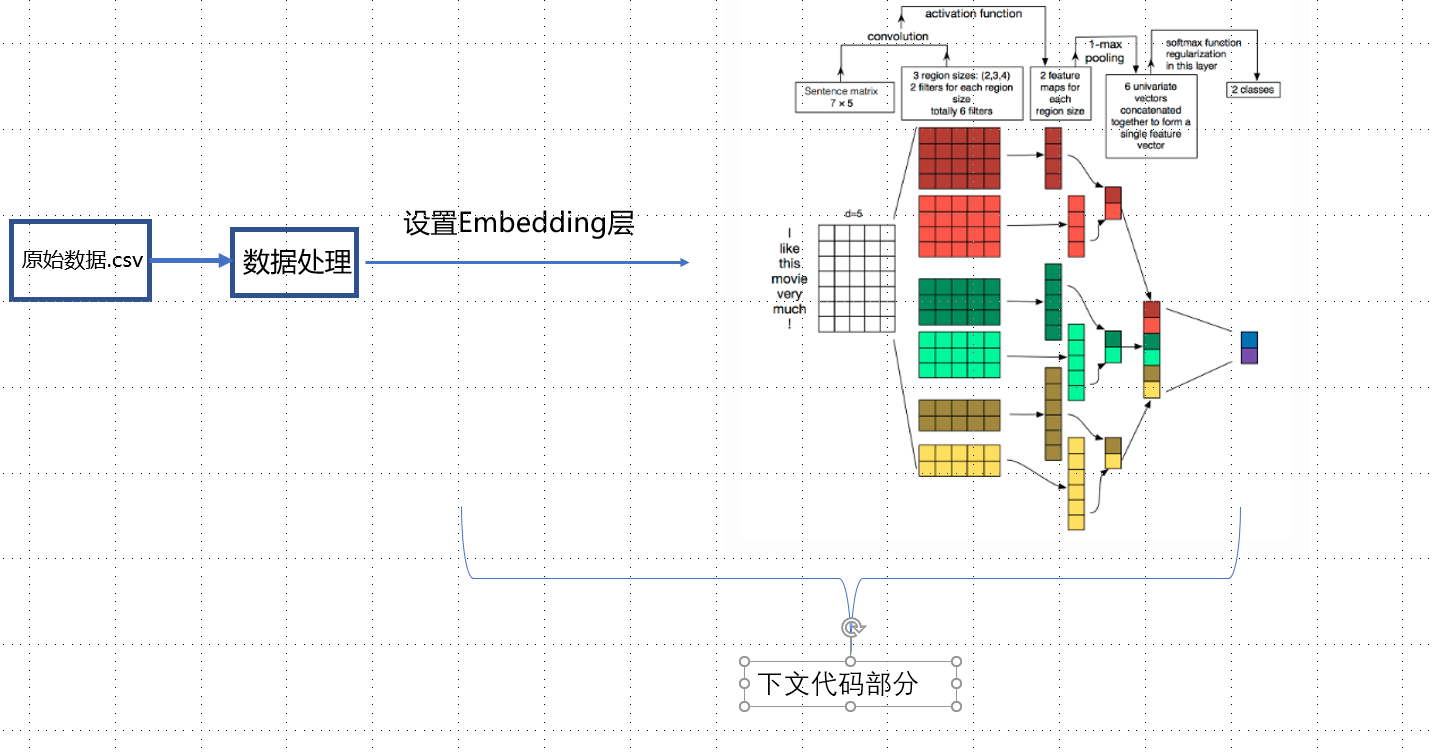

流程图

模型代码

import torch.nn as nn
import torch.nn.functional as F
class CNN(nn.Module):
    def __init__(self):
        super(CNN,self).__init__()
        # 设置embeding层
        self.embedding_choice=embedding_choice
        if self.embedding_choice==  'rand':
            self.embedding=nn.Embedding(num_embeddings,embedding_dim)
        if self.embedding_choice==  'glove':
            self.embedding = nn.Embedding(num_embeddings, embedding_dim,
                padding_idx=PAD_INDEX).from_pretrained(TEXT.vocab.vectors, freeze=True)
       #三层卷积层设置 convolution
        self.conv1 = nn.Conv2d(in_channels=1,out_channels=filters_num ,  #卷积产生的通道
                               kernel_size=(3, embedding_dim), padding=(2,0))

        self.conv2 = nn.Conv2d(in_channels=1,out_channels=filters_num ,  #卷积产生的通道
                               kernel_size=(4, embedding_dim), padding=(3,0))

        self.conv3 = nn.Conv2d(in_channels=1,out_channels=filters_num ,  #卷积产生的通道
                               kernel_size=(5, embedding_dim), padding=(4,0))
        # 正则化，防止过拟合
        self.dropout = nn.Dropout(dropout_p)
        #全连接层 functional connect
        self.fc = nn.Linear(filters_num * 3, label_num)
       # 前向传播
    def forward(self,x):      # (Batch_size, Length)
        x=self.embedding(x).unsqueeze(1)      #(Batch_size, Length, Dimention)
                                       #(Batch_size, 1, Length, Dimention)
        # Relu函数 提供非线性
        x1 = F.relu(self.conv1(x)).squeeze(3)    #(Batch_size, filters_num, length+padding, 1)
                                          #(Batch_size, filters_num, length+padding)
        # 池化层-降维
        x1 = F.max_pool1d(x1, x1.size(2)).squeeze(2)  #(Batch_size, filters_num, 1)
                                               #(Batch_size, filters_num)

        x2 = F.relu(self.conv2(x)).squeeze(3)
        x2 = F.max_pool1d(x2, x2.size(2)).squeeze(2)

        x3 = F.relu(self.conv3(x)).squeeze(3)
        x3 = F.max_pool1d(x3, x3.size(2)).squeeze(2)

        # 拼接
        x = torch.cat((x1, x2, x3), dim=1)  #(Batch_size, filters_num *3 )
        x = self.dropout(x)      #(Batch_size, filters_num *3 )
        out = self.fc(x)       #(Batch_size, label_num  )
        return out

设置 Embedding 层

self.embedding_choice=embedding_choice
       if self.embedding_choice==  'rand':
           self.embedding=nn.Embedding(num_embeddings,embedding_dim)
       if self.embedding_choice==  'glove':
           self.embedding = nn.Embedding(num_embeddings, embedding_dim,
               padding_idx=PAD_INDEX).from_pretrained(TEXT.vocab.vectors, freeze=True)

其中 rand模式 就是每个词向量随机赋值，glove模式就是从预训练的glove词向量中选择，如果这个词在glove中没有，就按照均匀分布给他随机赋值，padding_idx 参数为指定某行全为0

设置卷积层

#三层卷积层设置 convolution
 self.conv1 = nn.Conv2d(in_channels=1,out_channels=filters_num ,  #卷积产生的通道
                        kernel_size=(3, embedding_dim), padding=(2,0))

 self.conv2 = nn.Conv2d(in_channels=1,out_channels=filters_num ,  #卷积产生的通道
                        kernel_size=(4, embedding_dim), padding=(3,0))

 self.conv3 = nn.Conv2d(in_channels=1,out_channels=filters_num ,  #卷积产生的通道
                        kernel_size=(5, embedding_dim), padding=(4,0))

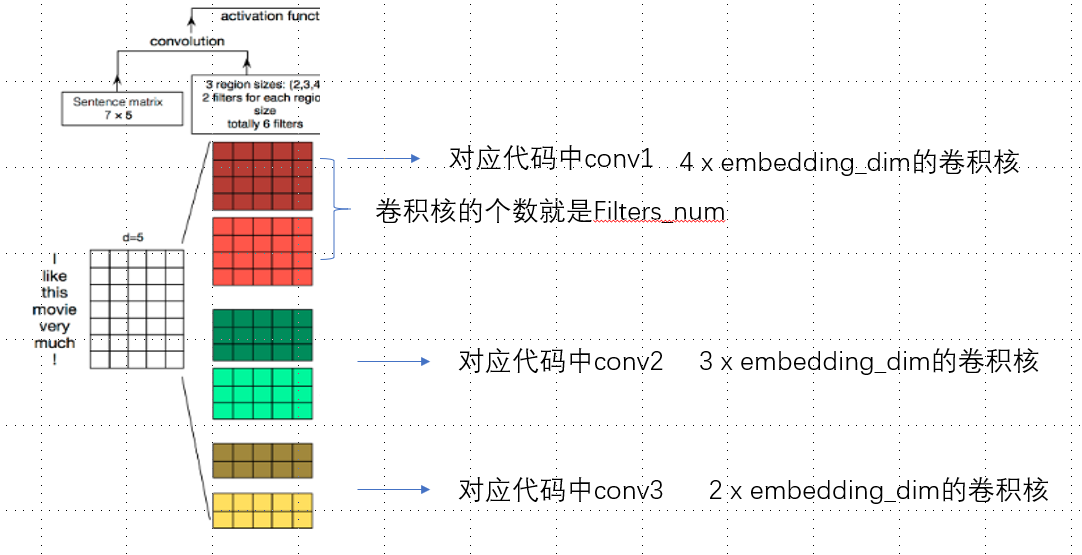

padding是在外围补多少0

如图

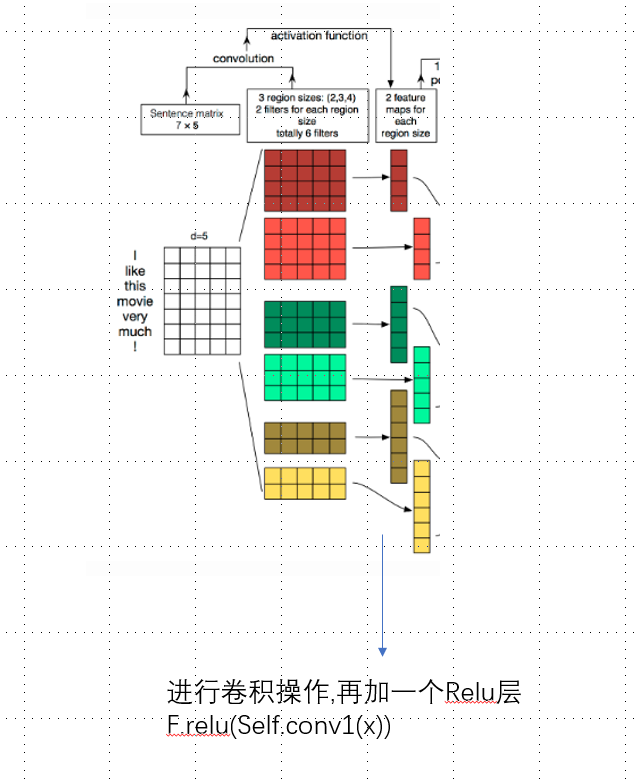

卷积运算

池化层

x1 = F.max_pool1d(x1, x1.size(2)).squeeze(2)  #(Batch_size, filters_num, 1)
                                               #(Batch_size, filters_num)

全连接层

# 拼接
x = torch.cat((x1, x2, x3), dim=1)  #(Batch_size, filters_num *3 )
x = self.dropout(x)      #(Batch_size, filters_num *3 )
out = self.fc(x)       #(Batch_size, label_num  )
